C. Horizontal Curves

1. Basic Concepts

a. General

While some alignments like an electrical transmission line can be designed with angle points at changes in horizontal direction, alignments for moving commodities with mass must have less abrupt transitions. This is accomplished by linking straight line segments with curves, similar to that in vertical alignments. However in this case the lines and curves linking them are in a horizontal plane.

A simple tangent geometric curve is used to link the two lines. A curve is tangent to a line when its radius is perpendicular to the line, Figure C-1.

horiz02b

Figure C-1
Line-Curve Tangency Condition



The two lines bounding the curve are generically referred to as tangents or tangent lines. The direction of a curve is either right or left based on the deflection direction between the tangents, Figures C-2 (a) and (b).

horiz01
(a) Deflection Angles
horiz01c
(b) Curves
Figure C-2
Curve Direction



In roadway design horizontal geometry differs from vertical because a driver is responsible for guiding a vehicle from the first tangent to the second one. This requires turning a steering wheel changing the car's direction. Ideally this would be a smooth action to cause minimal discomfort: once into a curve, the steering angle would be maintained until the tangent is reached.

Two different mathematical arcs can be used for horizontal curves, either singularly or in combination: a circular arc and a spiral arc.

b. Circular arc

A circular arc has a fixed radius which means a driver doesn't have to keep adjusting the steering wheel angle as the car traverses the curve. It is a simple curve which is relatively easy to compute, Figure C-3.

horiz02a
Figure C-3
Circular Arc



Its primary disadvantage is that the constant curvature must be introduced immediately at curve's beginning. That means a driver would have to instantaneously change the steering wheel angle from 0° to full or the car would overshoot the curve. A similar condition exists ate the curves's end. The higher the vehicle speed and the sharper the curve, the more pronounced the effect.

c. Spiral arc

A spiral has a constantly changing radius, Figure C-4. At the spiral's beginning, its radius is infinite; as the vehicle progreeses into the curve, the spiral radius decreases. A spiral provides a more natural direction transition - the driver changes the steering wheel angle uniformly as the car traverses the curve.

horiz03b
Figure C-4
Spiral Arc



Attaching a second sprial with reversed radius change creates an entrance-exit spiral condition where the driver gradually increases then gradually decreases steering wheel angle, Figure C-5.

horiz04
Figure C-5
Combined Spirals



A circular arc can be combined with two spirals, Figure C-6.

 horiz04b

Figure C-6
Spiralled Horizontal Curve



Combined spirals and spiralled horizontal curves, in conjunction with superelveation, help balance centrifugal forces. For a constant velocity, as the radius decreases the centrifugal force increases. A spiral allows superelevation to be introduced at a uniform rate allowing it to offset increasing centrifugal force. In theory, there exists an equilibrium velocity at which a vehicle could travel from one tangent through the spirals and curve to the second tangent safely even if the road were completely ice covered.

Railroad alignments typically use spiral horizontal curves because of their force balancing nature. Because of the wheel flange to rail connection, a train moving around a curve exerts a force directly to the rails (unlike a vehicle's tire-pavement connection which can devolve into a skid). A rail line laid out with a circular arc would shift to a spiral configuration after a train has run through it a number of time at transport speed.

The traditional disadvantage of a spiral is that it is complex to compute, although that has been largely negated by software. While still used for railways, in high speed highway design using long flat circular arcs minimizes the tangent to curve transition so spirals aren't as critical. They can be useful in low speed situations where there is a large direction transition. We'll examine spiral geometry and application in a later section.


2. Nomenclature; Components

a. Degree of Curvature

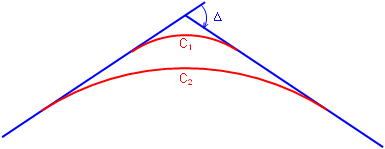

For any given set of tangents, there are an infinite number of circular arcs which can be fit between them. The arcs differ only in their radii which relates to their "sharpness." Consider the two arcs in Figure C-7:

Figure C-7
Different Arcs



Both curves must accommodate a total direction change of Δ but since C1 is shorter it is sharper than C2.

Degree of curvature is a traditional way of indicating curve sharpness. There are two different definitions of degree of curvature: arc and chord.

Arc definition, Da, is the subtended angle for a 100.00 ft arc; Chord definition, Dc, is the subtended angle for a 100.00 ft chord, Figure C-8.


   (a) Arc Definition

   (b) Chord Definition
Figure C-8
Degree of Curvature



Street and road alignments use the arc definition; chord definition is used for railroad alignments. For the remainder of this Chapter we will use the arc defintion and refer to it simply as D.

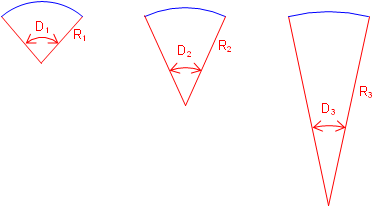

Degree of curvature is inversely proportional to radius: as D increases, R decreases, Figure C-9. The larger D is, the sharper the curve.

horiz10
Figure C-9
D and R Relationship



Note the importance of 100.00 in both Degree of Curvature versions. This goes back to a standard tape length and stationing interval. However, in the metric system there is no convenient base equivalent of 100.00 ft. While design criteria was traditionally expressed in terms of D, it is more common today to instead use R which works for both the English and metric systems.

The relationship between D and R is expressed by Equation C-1.

horiz21      Equation C-1



b. Curve Components; Equations

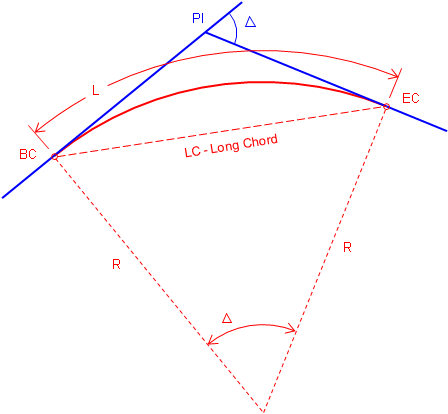

Figure C-10 shows a tangent circular arc with some basic components labeled.

 horiz06
Figure C-10
Basic Components of a Circular Arc



PI

Point of Instersection

BC

Begin Curve (aka: PC - Point of Curve; TC - Tangent to Curve)

EC

End Curve (aka: PT - Point of Tangent; CT - Curve to Tangent)

Δ

Defelction angle at PI; also the central angle of the arc

R

Arc radius

L

Arc Length

LC

Long Chord length

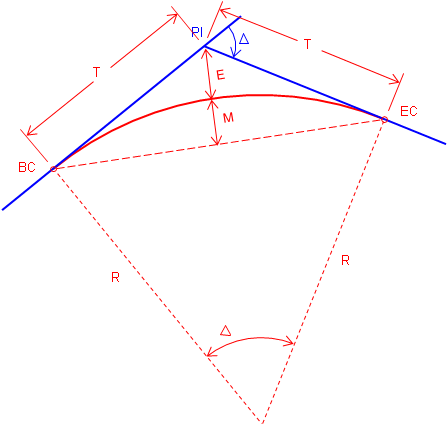

 Figure C-11 includes additional curve components.

 horiz07
Figure C-11
Additional Curve Components



T

Tangent distance

E

External distance - from PI to midpoint of arc

M

Middle ordinate - distance between midpoints of arc and Long Chord



Equations for the curve components are:

horiz22       Equation C-2
 horiz23       Equation C-3
 horiz24       Equation C-4
 horiz25       Equation C-5
 horiz26       Equation C-6



Although it may look like it in Figure C-11, E and M are not equal.

c. Stationing

As mentioned in Chapter A, an alignment is stationed at consistent intervals from its beginning through its end. On a finished desgin, the stationing should be along the tangents and the fitted curves.

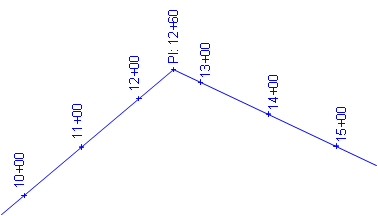

Traditionally, an alignment is stationed along the straight lines thru each PI, Figure C-12. Curve fitting comes later.

horiz32
 Figure C-12
Stationing Along Tangents



A circular curve is fit and staked. The stationing along the tangents between curve ends would be replaced by the curve stations, Figure C-13.

There are two ways to get from BC to EC:

(1) Up and down the tangents, T+T
(2) Along the curve, L

The distance along the curve is shorter than up and down the tangents: L < T+T

 horiz33
Figure C-13
Curve Inserted

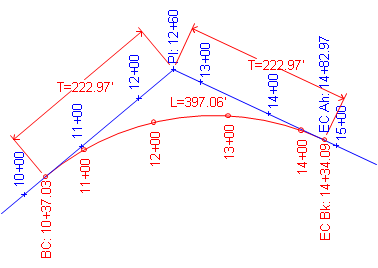

That means for a typical curve there are two stations for the EC:

One along the original tangents
One along the curve.

horiz34

Figure C-14
Stationing Along Curve



The EC station with respect to the original tangents is the EC Ahead. If we are standing on the EC and take a step ahead (up-station), we are on the tangent and its original stationing.

The EC station with respect to the curve is the EC Back. If we are standing on the EC and take a step back, we are on the curve and its stationing.

Chapter A mentioned that a station equation is used where one point has two stations. In this case we have a station equation at the EC: EC Sta Ahead = EC Sta Back. Figure C-15 is an example of a station equation indicator on a set of Wisconsin Dept of Trans highway plans.

horiz35
Figure C-15
Station Equation Indicator



A station equation represents a stationing discontinuity. We know the distance between two alignment points is their stationing difference. However if the points are on each side of an EC, the discontinuity must be taken into account. For example, the distance between stations 13+00 and 16+00 on the alignment shown in Figure C-14 is normally 300.00 ft but there are 48.88 ft "missing" at the EC. The 48.88 ft is the difference between the Ahead and Back stations: (14+82.97) - (14+34.09) = 48.88 ft. So the correct distance from 13+00 to 16+00 is 251.12 ft.

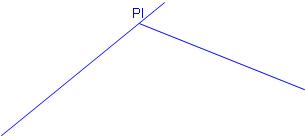

With software, it is possible to avoid station equations by waiting until the curves are fitted before stationing the entire alignment. With computer assisted designs, the PIs could be computed positions, Figure C-16.

 horiz39
Figure C-16
Computed Tangents and PVI

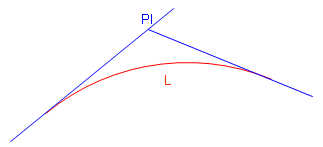

A curve is then fit to the tangents, Figure C-17.



 horiz40
Figure C-17
A Curve is Fit

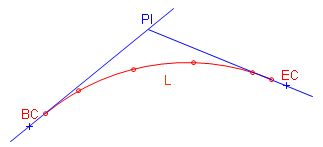

Then the alignment is stationed from its beginning to its end through the curves, Figure C-18. That way there are no station equations.

 horiz41
Figure C-18
Stationing Through Curve



So this latter method is simpiler and the one that should be used, right? Well, it does have some advantages, but it also has disadvantages. What happens if the alignment design must be changed at some point later in the process?

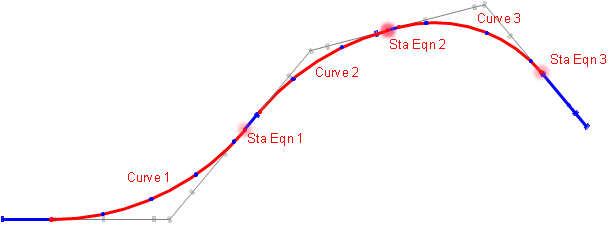

With traditional stationing, each curve has its own EC station equation. If one curve is altered, only its stationing is affected, no other stations on the alignment change, Figure C-19.

horiz37
(a) Original Stationing with Station Equations

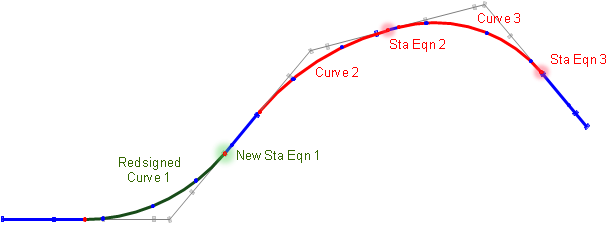

horiz38
(b) Limited Stationing Changes with Curve Modification
Figure C-19
Alignment with Station Equations



With continuous stationing, when a curve is altered it affects stations on it as well as all stations after it, Figure C-20.

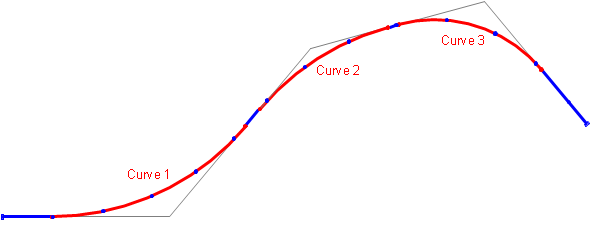

horiz45
(a) Original Continuous Stationing

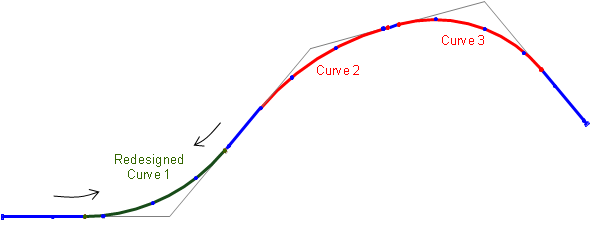

horiz46
(b) Stationing Changes on and after Modified Curve
Figure C-20
Alignment with Continuous Stationing



For example, if the redesigned curve is shorter, then all full (+00) station points after the curve increase. For example, 12+00 becomes 12+7.03, 13+00 becomes 13+07.03, etc. If the alignment is already staked then each stake could be renumbered or each could be each be moved back 7.03 feet. Hmm, odd stations or moving stakes.... Maybe station equations aren't so bad after all.

BC and EC stations are computed from the following formulae:

horiz47           Equation C-7
 horiz48 Equation C-8
 horiz49 Equation C-9



d. Example: Curve Components, Stationing

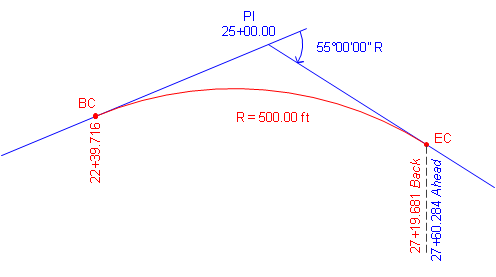

A PI is located at station 25+00.00. The deflection angle at the PI is 55°00'00" R. A 500.00 ft radius curve will be fit between the tangents.

Compute curve components and endpoint stations.

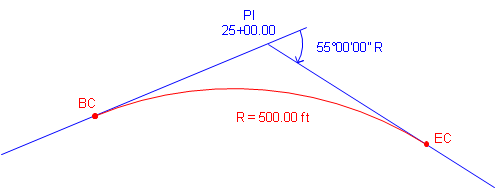

Start with a sketch:

horiz51

Use Equations C-2 through C-6 to compute curve components (carry an additional digit to minimize rounding errors):

horiz55

horiz56

horiz57

horiz58

horiz59

Compute degree of curvature using Equation C-1:

horiz60

Use Equations C-7 through C-9 to compute endpoint stations:

horiz61

horiz62

horiz63



horiz79


3. Radial Chord Method

a. Circular Geometry

For any circular arc, the angle between the tangent at one end of the arc and the chord is half the arc's central angle, Figure C-21.


Figure C-21 Deflection angle



 Angle a/2 is the deflection angle from one end of the arc to the other. The chord's length is computed from:

     Equation C-10



In terms of the degree of curvature, Figure C-22:

Figure C-22 Full station deflection angle



The deflection angle for a full station is half the degree of curvature. Since the deflection angle is D/2 and it occurs over a 100.00 ft, the deflection rate can be computed from:

 horiz73         Equation C-11



Extending this geometry to the entire curve, Figure C-23, the total deflection angle at the BC from the PI to the EC is Δ/2.

horiz71b
Figure C-23 Deflection angle for entire curve



Since the deflection angle occurs across the curve's length, the deflection rate can also be written as Equation C-12.

 horiz73b         Equation C-12



b. Radial chords

One way to stake a horizontal curve is by the radial chord method, Figure C-24.

 horiz78
Figure C-24 Radial chord method



An instrument is set up on the BC and the the PI is used as a backsight. Then to stake each curve point, an angle is turned and distance measured. For each curve point, we need to compute its deflection angle from the tangent and chord distance from the BC.

The deflection angle to any point i on the curve, Figure C-25, can be computed from Equation C-13.

horiz74
Figure C-25 Deflection angle and radial chord



horiz75       Equation C-13



li is the arc distance to the point from the BC and is computed using Equation C-14.

horiz76       Equation C-14



Equation C-10 can be re-written using the deflection angle:

horiz77         Equation C-15



Using Equations C-13 to C-15, the deflection angle and distance to any curve point from the BC can be computed.



c. Example

Determine the radial chord stakeout data at full stations for the example from Section 2.d.

Summary of given and computed curve data:

Δ = 55°00'00" R = 500.00 ft
D = 11°27'33.0" L = 479.965 ft T = 260.284 ft
LC = 461.749 ft E = 63.691 ft M = 56.494 ft
Point Station
PI 25+00.00
BC 22+39.716
EC 27+19.681 Bk = 27+60.284 Ah

horiz79

Use Equation C-11 to compute the curve's deflection rate:

horiz80

Set up Equations C-13, C-14, and C-15 for the curve:

horiz81

Set up the Curve Table:

Curve Point Arc dist, li, (ft) Defl angle,δi Radial chord, ci
EC      27+19.681 Bk
       27+00
       26+00
       25+00
       24+00
       23+00
BC      22+39.716



Solve the three equations for each curve point and record the results in the table.

At 22+39.716, we're still at the BC so all three entries are zero.

At 23+00:

horiz82

And so on until the table is complete.

Curve Point Arc dist, li, (ft) Defl angle,δi Radial chord, ci
EC      27+19.681 Bk 479.965 27°30'00.0" 461.748
       27+00 460.284 26°22'20.4" 444.203
       26+00 360.284 20°38'33.9" 352.540
       25+00 260.284 14°54'47.4" 257.355
       24+00 160.284 9°11'01.0" 159.599
       23+00 60.284 3°27'14.5" 60.248
BC      22+39.716 0.000 0°00'00.0" 0.000



Math checks:

Arc distances between successive full stations differ by 100.00 ft.

At the EC:

Arc distance should equal the curve length

Defl angle should equal Δ/2

Radial chord should equal Long Chord

The difference between deflection angles at successive full stations should be D/2.

These checks have been met.

Remember that we carried additional decimal places to minimize rounding errors. Rounding can become quite pronounced for long flat curves so computation care must be exercised. Once the table has been computed, the final values can be shown to reasonable accuracy levels. For example, distances can be shown to 0.01 ft and deflection angles to 01".

d. Summary

Computing and staking curve points by the radial chord method is simple and straightforward. Using the curve equations, any point on the curve can be computed and staked, not just those included in the curve table.

However, in the field, it may not be the most efficient way to stake a curve using modern instrumentation, particularly with long curves which may have chords thousands of feet long at very small deflection angles. Most contemporary survey computations and fieldwork use coordinates giving greater stakeout flexibility. While the radial chord method may not be used for stake out, it is well adapted to coordinate computations as we'll see in the next section.


4. Curves and Coordinates

a. Coordinate Equations

Equations C-16 and C-17 are general equations for computing coordinates using direction and distance from a known point, Figure C-26.

           Equation C-16
    Equation C-17



Figure C-26. Coordinate Computation



Direction (Dir) may be either a bearing or azimuth.

Curve point coordinates can be computed using these equations from a base point. Since the radial chord method uses the BC as one end of all the chords, it can also be used as the base point for coordinate computations.

b. Computation Process

Assuming we start with the tangents and PI, then fit a curve, the general process is as follows:

horiz88

Figure C-27

      The original tangent lines have directions; PC has coordinates.

 horiz89

Figure C-28



A curve is fit to the tangents.

End points are at distance T from the PI along the tangents.

 horiz94

Figure C-29



Compute coordinates of BC using back-direction of the tangent BC-PI and T.

horiz97       Equation C-18
horiz98   Equation C-19

 horiz95

Figure C-30



Compute coordinates of EC using direction of the tangent PI-EC and T.

These will be use for a later math check.

horiz99       Equation C-20
 horiz100   Equation C-21

 horiz96

Figure C-31



Use a curve point's deflection angle to compute the direction if its radial chord from the BC.

horiz101       Equation C-22



δ is positive for right deflections, negative for left.
Using the direction and chord length, compute the point's coordinates.

horiz102       Equation C-23
 horiz103   Equation C-24



c. Example

Continuing with the previous example problem.

Summary of given and computed curve data:

Δ = 55°00'00" R = 500.00 ft
D = 11°27'33.0" L = 479.965 ft T = 260.284 ft
LC = 461.749 ft E = 63.691 ft M = 56.494 ft



Point Station
PI 25+00.00
BC 22+39.716
EC 27+19.681 Bk = 27+60.284 Ah



horiz79



Additional information: Azimuth of the initial tangent is 75°40'10"; coordinates of the PI are 1000.00 N, 5000.00' E.

Compute coordinates of the BC:

horiz110

horiz111

Compute the coordinates of the EC:

horiz112

horiz112a

Set up Equatons C-21 through C-24 for this curve.

horiz113

This is the Radial Chord table computed previously:

Curve Point Arc dist, li, (ft) Defl angle,δi Radial chord, c
EC      27+19.681 Bk 479.965 27°30'00.0" 461.748
       27+00 460.284 26°22'20.4" 444.203
       26+00 360.284 20°38'33.9" 352.540
       25+00 260.284 14°54'47.4" 257.355
       24+00 160.284 9°11'01.0" 159.599
       23+00 60.284 3°27'14.5" 60.248
BC      22+39.716 0.000 0°00'00.0" 0.000



 Add three more columns for direction and coordinates:

     Curve Point Azimuth, Azi North, Ni East, Ei
EC      27+19.681 Bk
       27+00
       26+00
       25+00
       24+00
       23+00
BC      22+39.716



Complete the table using the three equations for this curve

At 22+39.716, we're still at the BC so the coordinates don't change.

At 23+00:

horiz113

At 24+00:

horiz114

and so on for the rest of the curve points.

The completed curve table is:

     Curve Point Azimuth, Azi North, Ni East, Ei
EC      27+19.681 Bk 103°10'10.0  830.375 5197.419
       27+00 102°02'30.4" 842.904 5182.244
       26+00 96°18'43.9" 896.816 5098.218
       25+00 90°34'57.4" 932.959 5005.157
       24+00 84°51'11.0" 949.894 4906.770
       23+00 79°07'24.5" 946.944 4806.981
BC      22+39.716 75°40'10" 935.576 4747.815



Math check: the coordinates computed for the EC in the table should be the same as the EC coordinates computed from the PI. Within rounding error, that's the case here.

d. Summary

The radial chord method lends itself nicely to computing curve point coordinates. The computations are not complex, although they are admittedly tedious.

Once coordinates are computed, field stakeout is much more flexible using Coordinate Geometry (COGO).




Section 5. Chord Definition

a. General

Recall from Section 2 there are two definitions for degree of curvature, Figure C-32.

a. Arc Definition

b. Chord Definition

Figure C-32
Degree of Curvature


Arc definition is the central angle for a 100.00 ft arc; chord is for a 100.00 ft chord.
Since the geometry is slightly different, the mathematical relationship between R and Dc is Equation C-25.

Equation C-25


Equations C-3 through C-6 for T, LC, E, and M can be used with no changes.

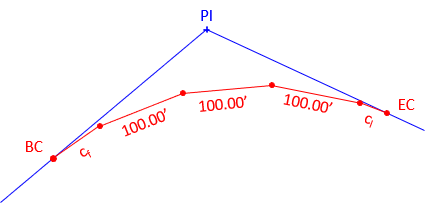

Equation C-2 for L does not yield the total arc length of the curve from the BC to EC. It returns the sum of the subchords, Figure C-33 and Equation C-26.


Figure C-33
Sum of the Chords



Equation C-26

 Where:

cf first partial chord (<100.00 ft)
n number of full 100.00 ft chords on the curve
cl last partial chord (<100.00 ft)



b. Stationing

The same equations are used to compute endpoint stationing for arc and chord definition curves.

Equation C-27
Equation C-28
Equation C-29


A notable difference from the arc definition is that curve stationing is along the chords, not the arcs.


c. Radial Chord Deflection Method

Because stationing is through the chords, deflection angles to curve points are can be computed by adding incremental deflection angles. The radial chord to each curve point is determined using Equation C-15.

First partial chord, cf

cf is the difference between the first full curve station and the BC station.
The central angle and incremental deflection angles are:
Equation C-30
Equation C-31



Last partial chord, cl:

cl is the difference between the last full curve station and the EC Back station.
The central angle and incremental deflection angles are:
Equation C-32
Equation C-33


Nominal chord

The chord between adjacent full stations is 100.00 ft.
The incremental deflection angle is:
Equation C-34



Starting with the first incremental deflection angle, the procedure to compute total deflection angle to curve points is:



d. Example Problem

PI Station is 59+45.00, Δ angle is 30°00'00", a 7°00'00" degree of curvature (chord def) will be used.
Compute the curve table.


(1) Curve components
(2) Stationing
(3) Incremental deflection angles
first partial chord
last partial chord
nominal chord
(4) Curve Table

Set up table with stations and incremental deflection angles

  Sta Inc Defl Total Defl Radial Chord
EC Bk 61+54.115 1°53'39"
  61+00 3°30'00"
  60+00 3°30'00"
  59+00 3°30'00"
  58+00 2°36'21"
BC 57+25.544 0°00'00



Compute total deflection angle by adding incremental deflection angles

  Sta Inc Defl Total Defl Radial Chord
EC Bk 62+65.715 1°53'39" 15°00'00"
  62+00 3°30'00" 13°06'21"
  61+00 3°30'00" 9°36'21"
  60+00 3°30'00" 6°06'21"
  59+00 2°36'21" 2°36'21"
BC 58+37.174 0°00'00 0°00'00"
Total deflection angle to EC is 30°00'00"/2 = 15°00'00"  check

 Compute radial chord to curve point using:

  Sta Inc Defl Total Defl Radial Chord
EC Bk 62+65.715 1°53'39" 15°00'00"  423.96
  62+00 3°30'00" 13°06'21"  371.43
  61+00 3°30'00" 9°36'21"  273.34
  60+00 3°30'00" 6°06'21"  174.42
  59+00 2°36'21" 2°36'21"  74.47
BC 58+37.174 0°00'00 0°00'00"  0.00
Radial chord to EC is 423.96' = LC  check

e. Arc Length

Should it be needed, the arc length, LA, from the BC to the EC, can be computed using Equation C-35.

Equation C-35

Δr is the Δ angle in radians, Equation C-36.

Equation C-36
